Key facts
Product type Digital formaldehyde sensor module | Measures Formaldehyde concentration in ppb | Feature Low cross-sensitivity to other VOCs |
SFA30 formaldehyde sensor module
Start testing the SFA30 formaldehyde sensor module with the evaluation kit.
Includes SFA30 module, UART to USB adapter cable and jumper wire set.
Product catalogueStart prototyping
Find everything you need here.
The SFA30 is Sensirion’s new digital formaldehyde sensor designed for easy integration into air purifiers, demand-controlled ventilation systems, or indoor air quality monitors.
Based on Sensirion’s electrochemical technology, the SFA30 offers excellent formaldehyde sensing performance with a uniquely low cross-sensitivity to other VOCs. The sensor module’s on-board SHT sensor provides accurate humidity and temperature readings and enables a fully temperature/humidity compensated and factory calibrated formaldehyde concentration output in ppb. Selectable digital UART and I²C interface options, a standard electrical connector, and versatile mounting options make the integration easy. Relying on Sensirion’s experience in environmental sensing and a patented electrochemical cell with anti-dry technology, the SFA30 offers excellent long-term stability and 6 years service lifetime.
Build a BLE Gadget with Arduino and SFA30
| SFA30 embedded drivers | Generic drivers that can be ported to new microcontrollers with little effort |
| SFA30 Arduino I2C | C++ Arduino library to work with SFA30 formaldehyde sensor module via I2C |
| SFA30 Arduino UART | C++ Arduino library to work with SFA30 formaldehyde sensor module via UART |
| SFA30 Arduino snippets | Standalone Arduino solutions demonstrating the communication with the sensor |
| SFA30 Raspberry Pi I2C | Raspberry Pi driver using the Linux userspace I2C interface |
| SFA30 Raspberry Pi UART | Raspberry Pi driver using the UART interface |
| SFA30 makecode | Makecode extension for the micro:bit platform |
Evaluate without writing code
In just two simple steps, you will be collecting valuable data without needing any coding or soldering skills.
How it works
- Either download the SEK-ControlCenter viewer software (available for Windows, Linux and MacOS) or download one of our example drivers for your embedded platform
- Connect the SFA30 development board to your computer/embedded platform with the help of the adapter cables and start measuring
Find out what the evaluation kit holds
SFA30 formaldehyde sensor module
- UART and I2C interface via 7-pin Molex Micro-Lock Plus connector
- Supply voltage VDD: 3.3 or 5.0 V
- Size: 46 x 24 x 5.5 mm3

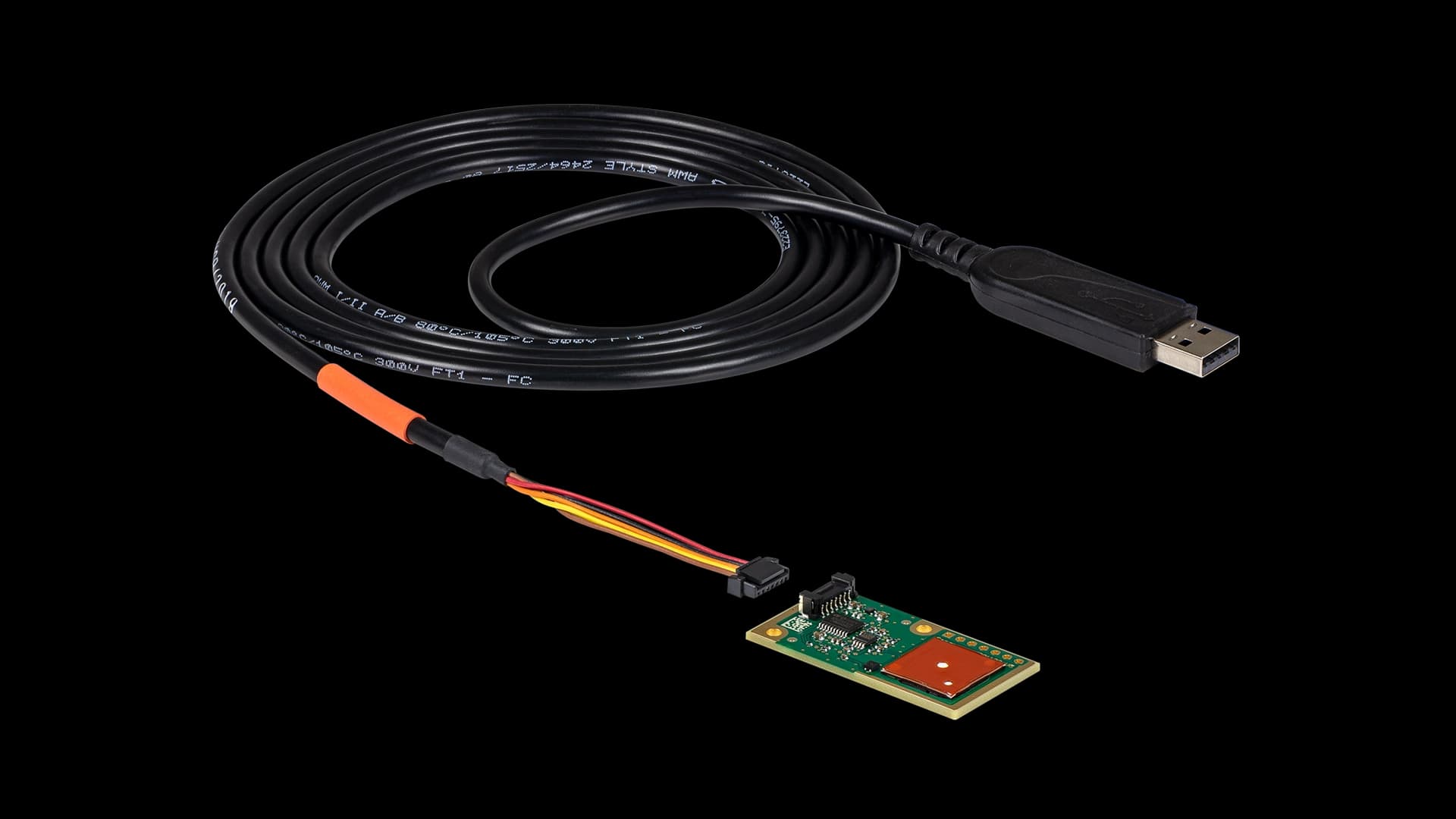

USB-UART cable
(7-pin, marked with an orange sleeve) to connect the SFA30 development board directly to a USB port, e.g. on a PC
Jumper wire set (7-pin Micro-Lock Plus cable set) to connect the SFA30 development board to embedded testing platforms like Arduino or Raspberry Pi. A 10-pin 0.1’’ pitch gender changer is also provided.
Cable configuration:
- Red cable = VDD
- Black cable = GND
- Green cable = SDA (I2C) or RX (UART)
- Yellow cable = SCL (I2C) or TX (UART)
- Blue cable = SEL (Interface select - Connect to GND for I2C, connect to VDD or leave open to select UART)
- Purple cable = NC (do not connect)
- Grey cable = NC (do not connect)
