SHT4x humidity and temperature sensor

Start testing the SHT4x humidity and temperature sensor with the evaluation kit.

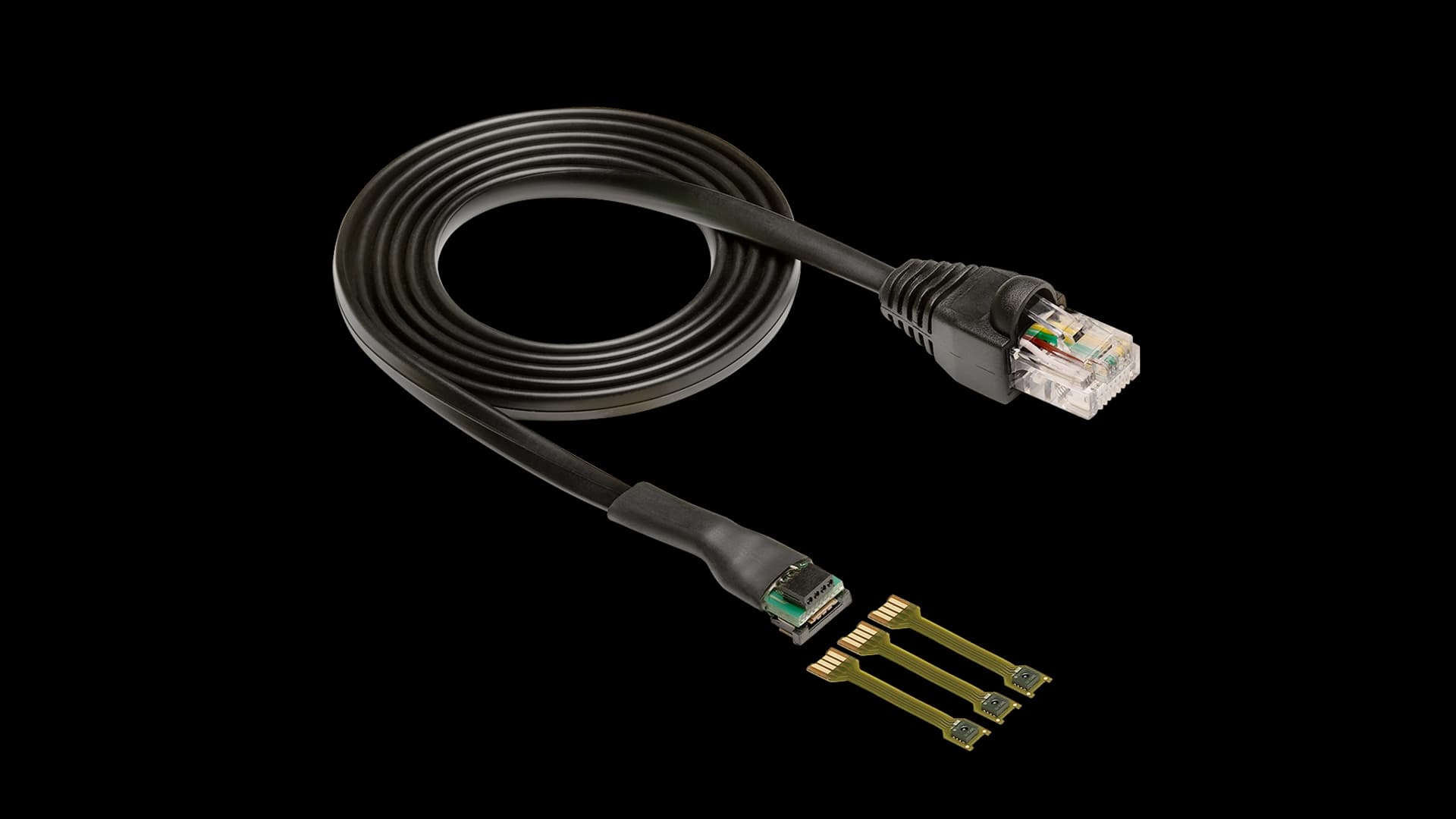

Includes three SHT40 on flex PCB and RJ45 adapter cable. Requires SEK-Sensorbridge.

Product catalogue

Key facts

Product type

Digital humidity and temperature sensor

Measures

Relative humidity and temperature

Feature

Reduced power consumption and improved accuracy

Start prototyping

Find everything you need here.

Product description

The SHT4x builds on a completely new and optimized CMOSens® chip that offers reduced power consumption and improved accuracy specifications. With the extended supply voltage range from 1.08 V to 3.6 V, it’s the perfect fit for mobile and battery-driven applications. The exceptionally small size in a robust DFN housing enables integration into challenging designs while meeting the highest reliability demands, as demonstrated by the JEDEC JESD47 qualification.

The high-accuracy versions SHT41 and SHT45 feature typical and maximal accuracies that have been honed even further, down to ∆RH = ± 1.5% RH and ∆T = ± 0.1°C, making them suitable for the most demanding applications in all industries.

Drivers and sample code

SHT4x embedded drivers	Generic drivers that can be ported to new microcontrollers with little effort
SHT4x Arduino driver	C++ Arduino library to work with SHT4x temperature and humidity sensor via I²C
SHT4x Raspberry Pi driver	C Raspberry library to work with SHT4x temperature and humidity sensor via I²C
SHT4x Arduino snippets	Standalone Arduino solutions demonstrating the communication with the sensor

Resources

Datasheet

Design-in guide

Handling instructions

Application note humidity at a glance

Application note ESD/Latch-Up/EMC

Application note specification statement and testing

Evaluate without writing code

In just three simple steps, you will be collecting valuable data without needing any coding or soldering skills.

How it works

Download the SEK-ControlCenter viewer software (available for Windows, Linux and MacOS)
Connect the SEK-SHT40 sensor to a SEK-SensorBridge
Connect the SEK-SensorBridge to your PC and start measuring
