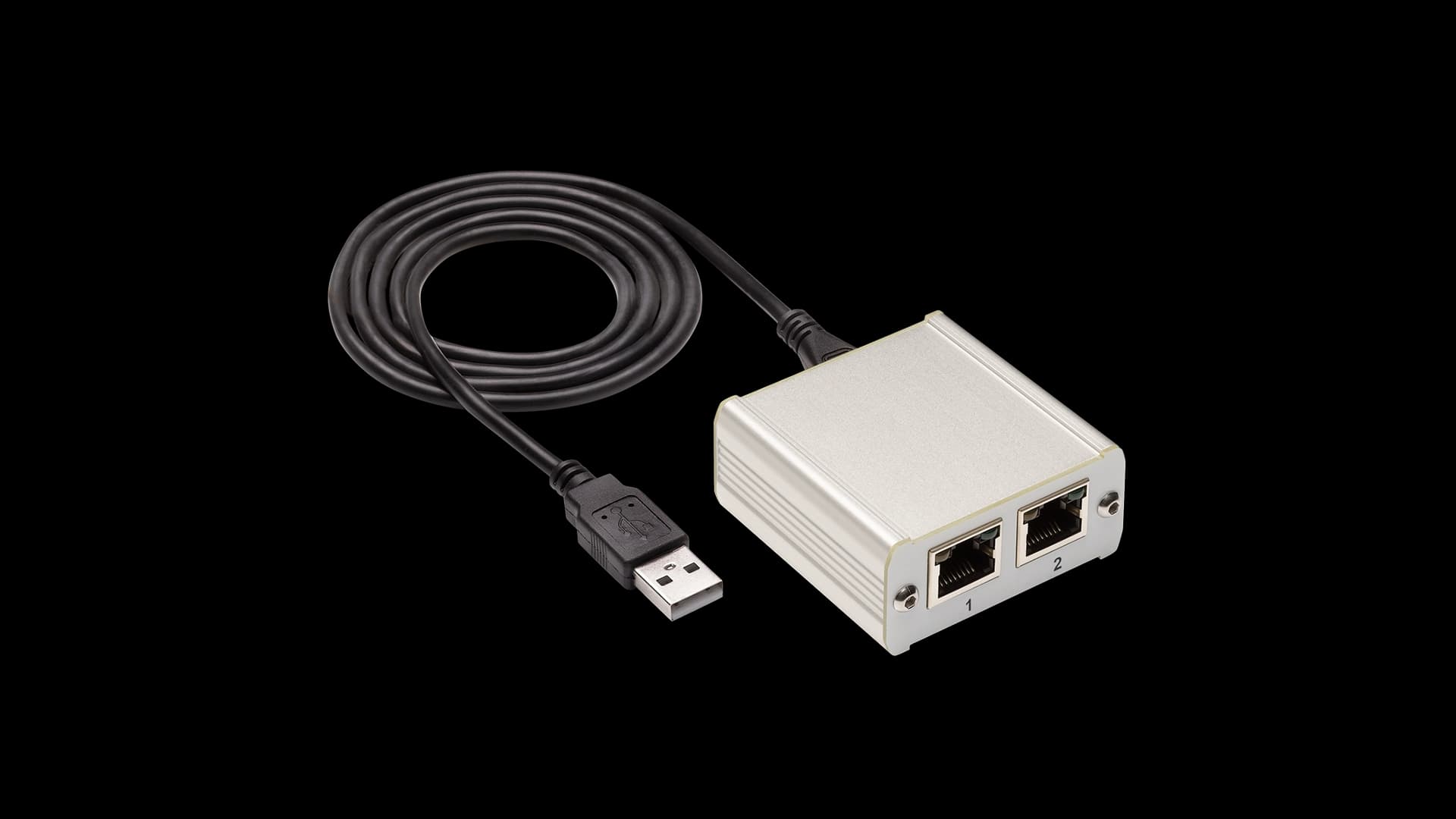

SEK-SensorBridge

Connecting bridge with two sensor ports

No alternate text provided

Start evaluating with the SEK-SensorBridge

The SEK-SensorBridge allows you to connect suitable Sensirion sensors to a computer.

Product catalogue

There are two ports on the SensorBridge, allowing you to connect sensors. You can connect more than one sensor to each port, provided that the sensors have different I2C addresses. Each port corresponds to an independent channel offering:


  • I2C bus with speed up to 1MHz
  • 1.2V – 5.5V selectable supply
  • Power supply up to 250mA @ 5V
  • Analog in (0 – 5.5V)*
  • SPI bus with speed up to 2MHz*

Start your evaluation journey with ControlCenter

The SEK-ControlCenter viewer software makes it possible to display and log the sensor signals for multiple sensors connected to several SEK-SensorBridges on the same PC. Please find the latest versions through the links below.
