Key facts
Product type VOC and NOx sensor | Measures VOC and NOx raw values | Feature Raw data for evaluation and testing of sensing algorithms |
SEK-SGP4x-Sensor evaluation kit
For the SGP41 and SGP40 VOC/NOx sensors
Start testing the SGP4x gas sensor with the SEK-SGP4x-Sensor evaluation kit
Includes SGP4x development board (featuring SGP4x and SHT41), Qwiic to RJ45 adapter cable and jumper wire set.
Get product nowStart prototyping
Find everything you need here
The SEK-SGP4x-Sensor evaluation kit is designed for engineers and developers to quickly prototype and integrate Sensirion’s VOC and NOx gas sensors into their applications. It supports both SGP40 and SGP41 sensor operation modes and includes a combined humidity and temperature sensor SHT41. Unlike the SEK-SVM4x evaluation kit, this breakout board has no onboard microcontroller and outputs only raw sensor values (SRAW). To obtain VOC and NOx Index or other processed signals, the SEK-SGP4x board can be connected to PC using Sensirion’s SEK-SensorBridge and read out with the SEK-ControlCenter software.
| SGP40 embedded driver | Generic driver that can be ported to new microcontrollers with little effort |
| SGP40 Arduino driver | C++ Arduino library to work with SGP40 gas sensor via I2C |
| SGP40 Raspberry Pi driver | C Raspberry library to work with SGP40 gas sensor via I2C |
| SGP40 Python driver | Python Driver to work with SGP40 gas sensor via I2C |
| Code samples Arduino | Standalone Arduino solutions demonstrating the communication with the sensor |
| VOC index algorithm | Provides an index output signal calculated from SGP40 raw signals |
| VOC index algorithm library for Arduino | Arduino Library providing an index output signal calculated from SGP40 raw signals |
| SGP41 embedded driver | Generic driver that can be ported to new microcontrollers with little effort |
| SGP41 Arduino driver | C++ Arduino library to work with SGP41 gas sensor via I2C |
| SGP41 Raspberry Pi driver | C Raspberry library to work with SGP41 gas sensor via I2C |
| SGP41 Python driver | Python Driver to work with SGP41 gas sensor via I2C |
| Code samples Arduino | Standalone Arduino solutions demonstrating the communication with the sensor |
| VOC index algorithm | Provides an index output signal calculated from SGP41 raw signals |
| VOC index algorithm library for Arduino | Arduino Library providing an index output signal calculated from SGP41 raw signals |
Evaluate without writing code
In just few simple steps, you will be collecting valuable data without needing any coding or soldering skills.
Step 1:
- Order a SEK-SensorBridge via our distribution network.
Step 2:
- Download the SEK-ControlCenter viewer software (available for Windows, Linux and MacOS).
Step 3:
- Connect the SGP4x development board to your computer by using a SEK-SenoBridge and start measuring.

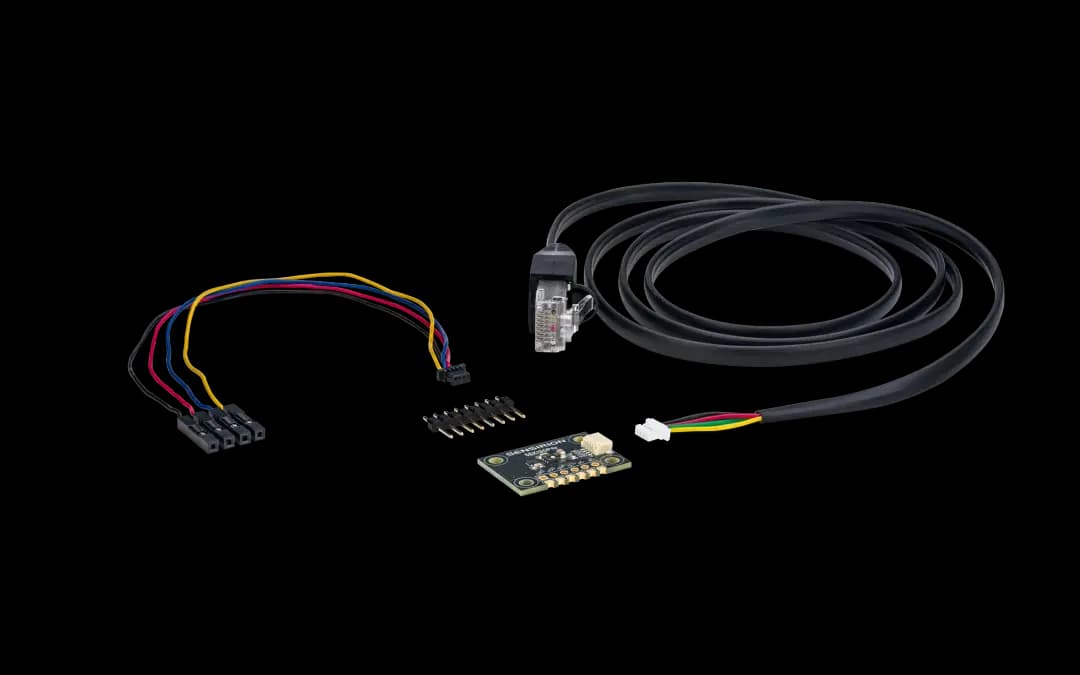

Find out what the evaluation kit holds

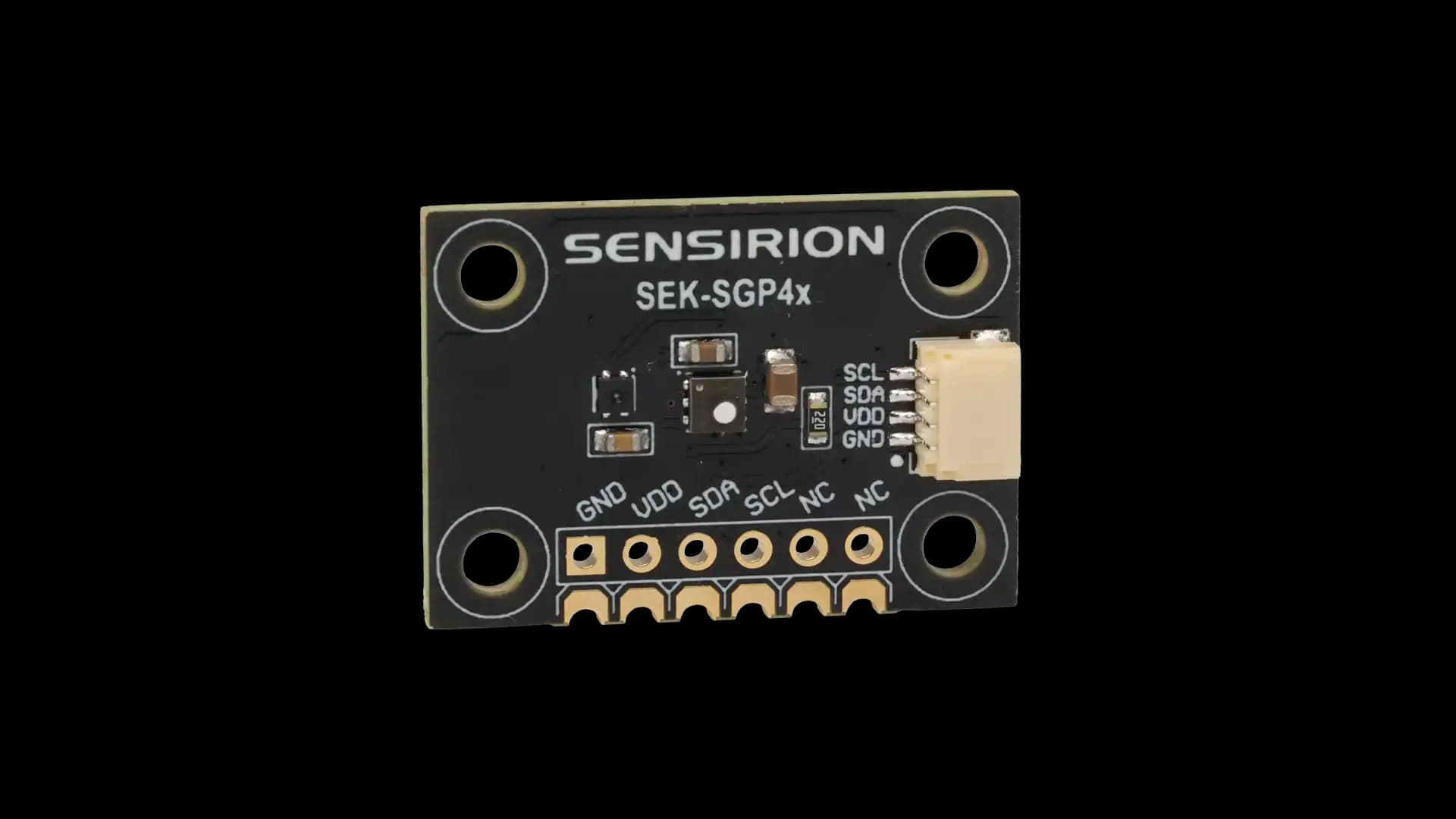

SGP4x development board
- SGP4x VOC+NOx sensor and SHT41 humidity and temperature sensor
- I2C interface
- Supply voltage VDD: 1.8 - 3.3 V
- Size: 27 x 19 x 1.6 mm3
Adapter cable to connect the SGP4x development board to SEK-SensorBridge.
Jumper wire set (4-pin Qwiic cable female) to connect the SGP4x development board to embedded platforms like Arduino, Raspberry Pi, etc. A 10-pin 0.1" pitch-gender changer is also provided.
Cable configuration:
Red cable = VDD
Black cable = GND
Green cable = SDA (I2C)
Yellow cable = SCL (I2C)

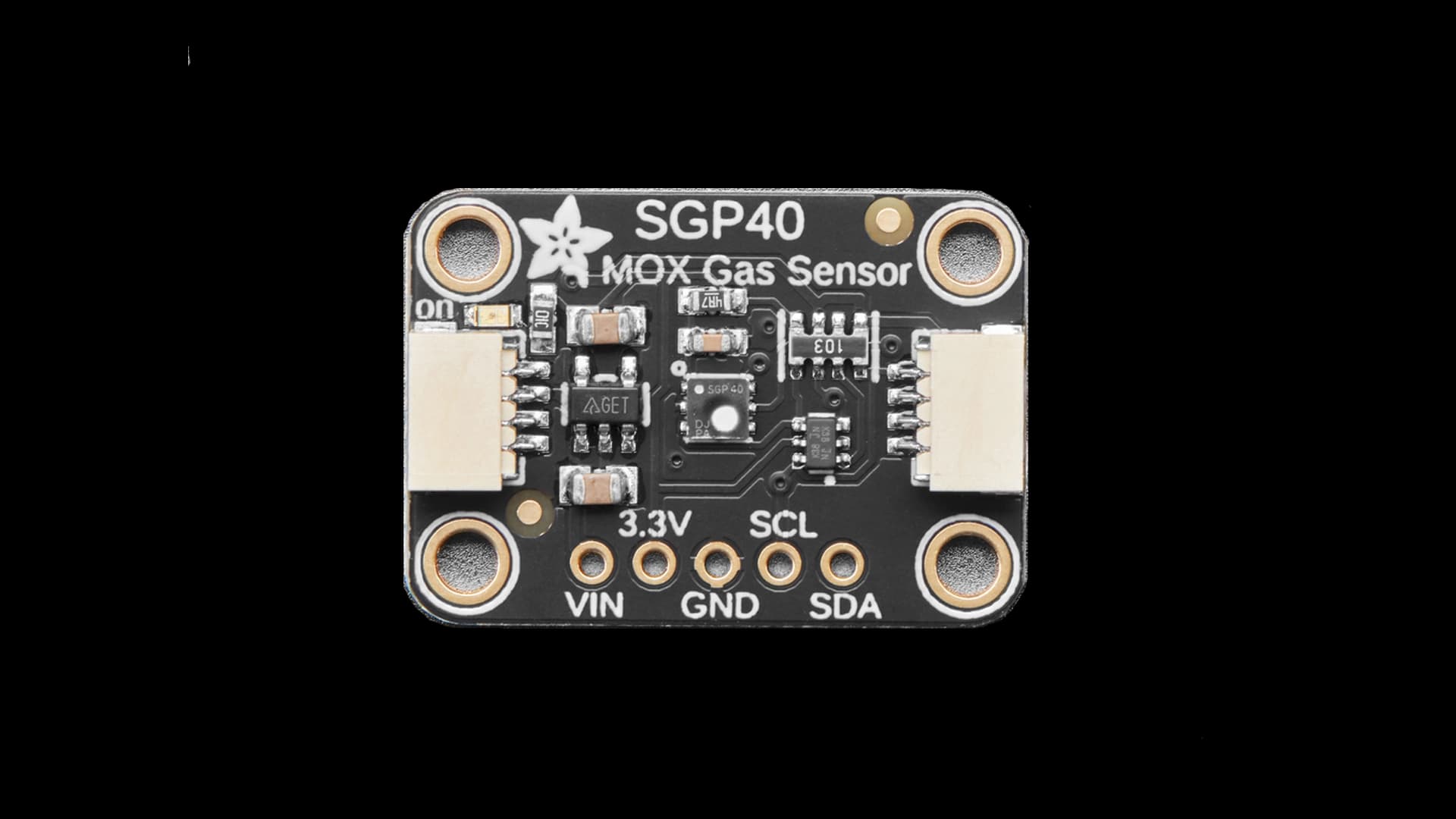

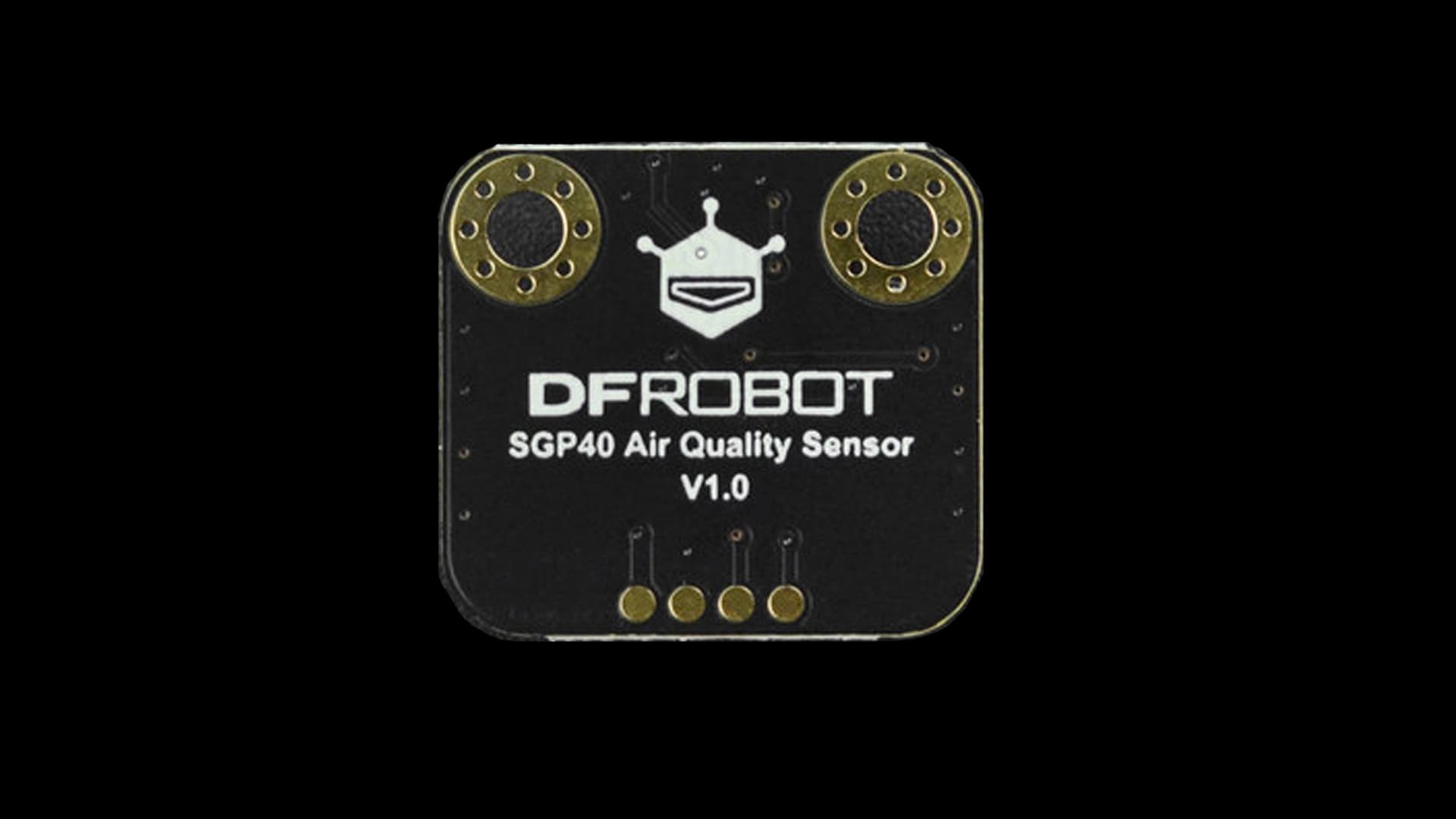

Discover SGP4x featured breakout boards
Related product: SENSEVAL-SCB4XV1 board
Check out this evaluation board for SHT4x temperature and humidity, SGP40 VOC and STMicroelectronics LPS22DF barometric pressure sensors.
